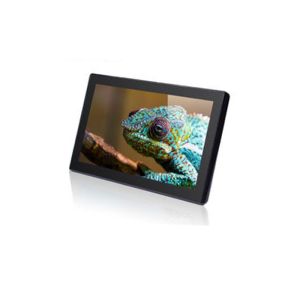

Touch Screen Digital Signage Monitor Display , 19 Inch Digital Display Monitors

  • 1
  • 2
  • 3

Brand Name : YD

Model Number : 19" Touch Screen

Certification : CCC, RoHS

Place of Origin : China

MOQ : 1 Pcs

Payment Terms : L/C, T/T, Western Union

Delivery Time : 20~25 days

Packaging Details : Plywooden case

Price : Negotiable

Screen Size : 19"

Application : Rack-mounted

Voltage : AC 100V-240V ,50-60HZ

On Mode : 45W(max)

Stand By : 1W

Life : At Least 60,000 Hours

Contact Now

19 Inch Touch Screen LCD Digital Signage Monitor Rack Mounted 482L*355W*61.5Dmm

Specifications
Panel size OEM (32INCH,42INCH,46INCH,50INCH,70INCH,84INCH,)
Display area(mm)/mode 930(W)×523.0(H) 16:9
Maximum resolution 1920×1080
Display color 16.7M
Pixel Pitch(mm) 0.4845(H)×0.4845(V)
Brightness (nits) 500cd/m2
Contrast 1400:1
Visual angle 178°/178°
Response time 8ms
Horizontal frequency 50-70KHZ
Backlight mode LED
Vertical frequency 56-75KHZ
Life(hrs) >60,000(hrs)
Specifications for touch screen
Panel size 26"~65"
Maximum resolution 4096*4096
Linearity error <5MM
Scanning speed 50SCANS/S
Durability stand more than 60000000 times multi-points touch
Surface hardness 7H
Transmittance ≥98%
Response time <16MS
System support Android , WIN7/XP
Input and output
SD 1 (support 1080P, up to 32G)
SATA hard disk support
Network infterface RJ45 10/100M Network Adaptive
D-15 pin RGB input 1
USB Support USB 2.0, support FAT,FAT32,exFAT and NTFS format
LVDS interface can drive lcd screen directly
Video and audio
Video system PAL/NTSC/SECAM
Play formats Compatible many play formats
Video H.264,MKV,WMV9,MPEG 1/2/4,HD Divx,Xvid,RM/RMVB
Audio MP3,WMA,WAV,EAAC+, MP2 dec, Vorbis(Ogg), AC3, FLAC, APE, BSAC
Picture BMP/PNG/GIF/JPEG(4088*4088)
Word TXT
OSD display( screen menu display)
Menu language Chinese/English
Power
Power supply AC100V~240V,50/60Hz
Maximum power consumption <=280W
Standby power consumption <=3W
Temperature
Working temperature 0°C~50°C
Storage temperature -10°C~60°C
Working humidity 20%~80%
Storage humidity 5%~95%
Appearance
Body dimension(Lx W x H)mm 1249.6×739.2×122.2((for reference only)
Panel color/appearance Ipad design
Panel material SPCC/Aluminum/Customized
Installation wall mount
Certificate CE/FCC/3C/RoHS
